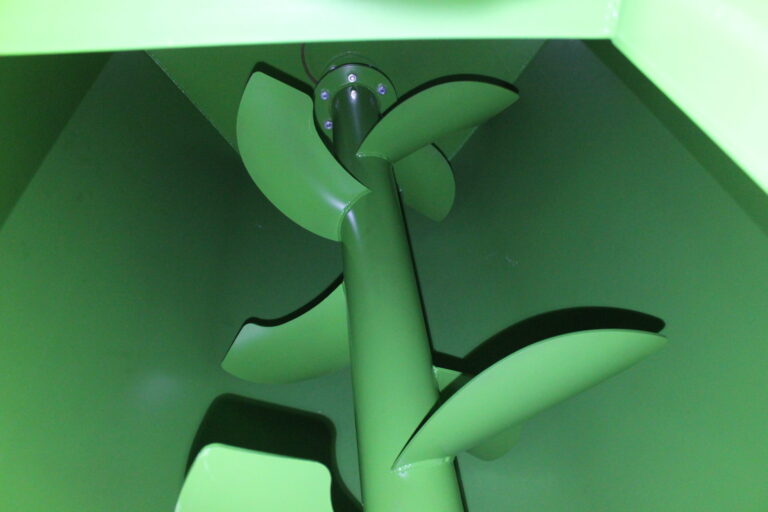

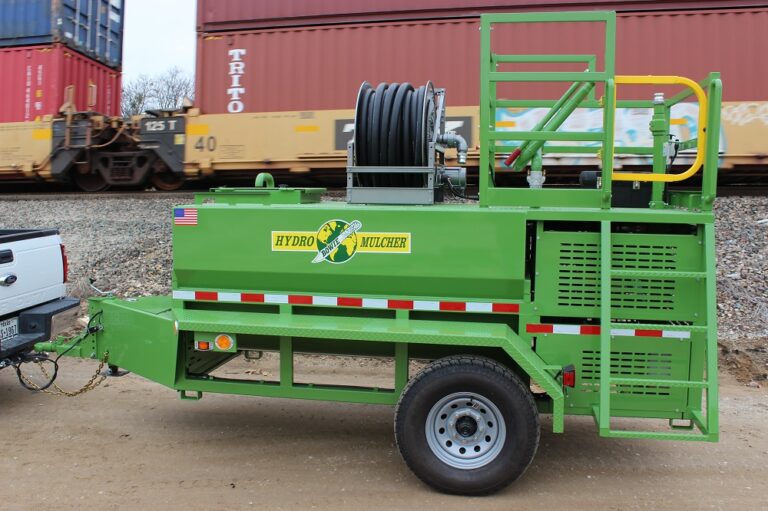

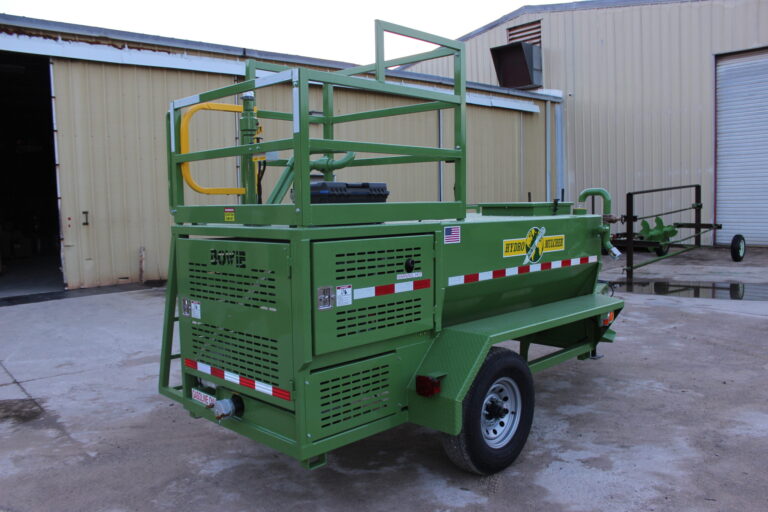

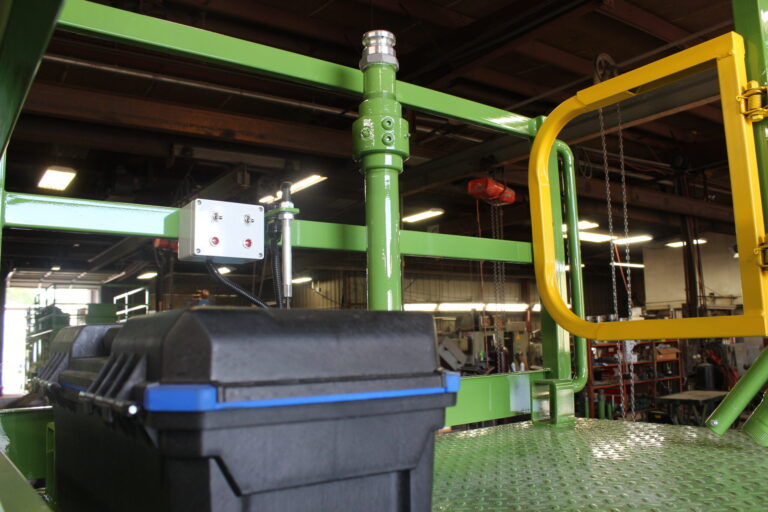

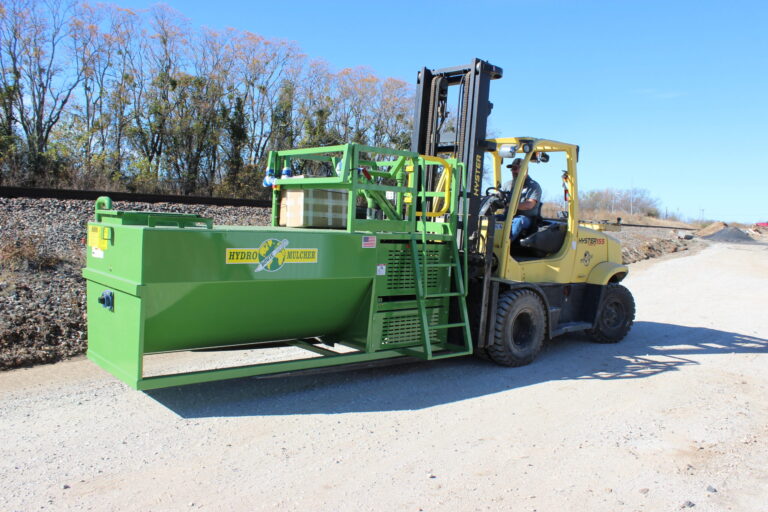

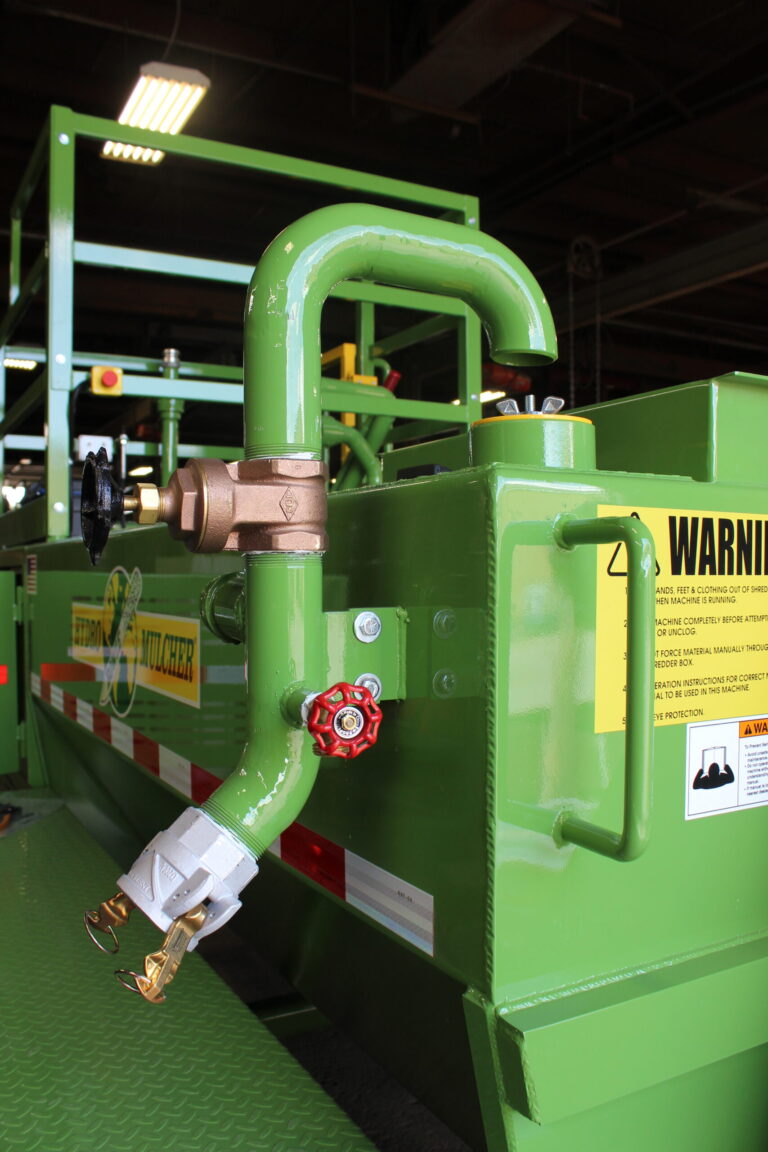

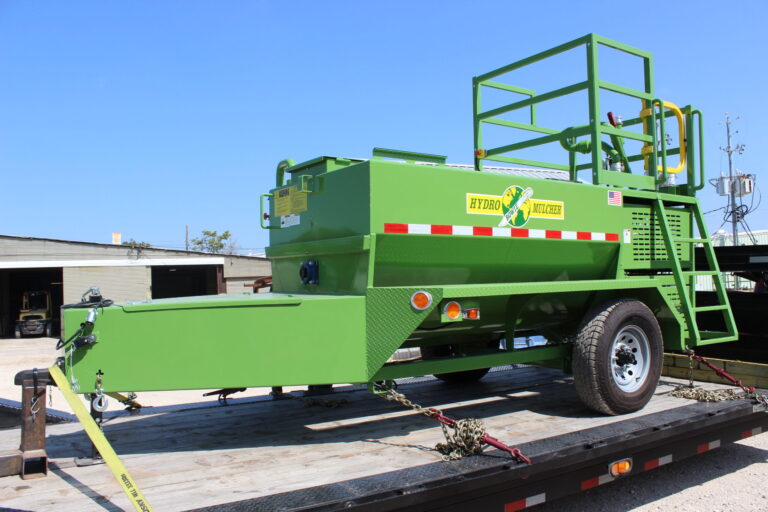

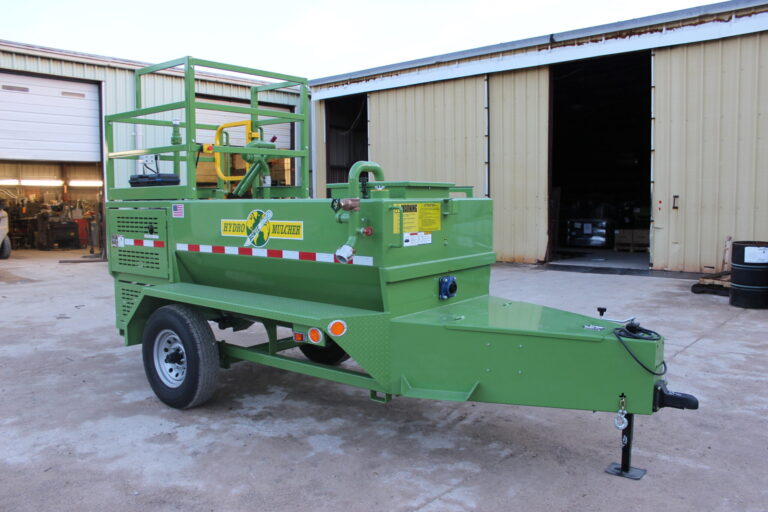

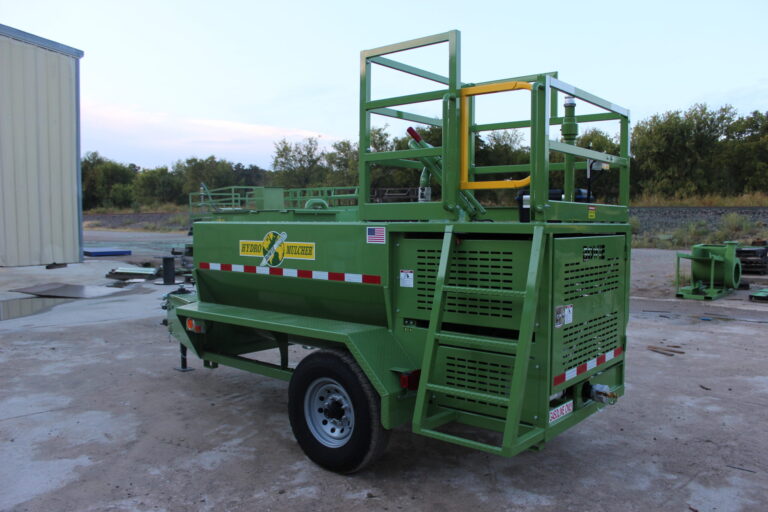

With Bowie’s Lancer 600, you can apply your product either from the working platform using the discharge cannon or from the ground using a hose. You can cover more area with less labor. This unit uses one clutch to operate the full size agitator and another to operate the pump. It is available as either a skid or trailer mounted unit. What ever your application needs are, you can rely upon Bowie’s “Built Strong….Built to Last” equipment.
Specifications |
Standard Included Parts & Equipment |
|---|---|
| Engine: Kohler 25 hp EFI Air Cooled Gas | 4-Nozzles (EC1735, EC1739 EC1740 & EC1749) |

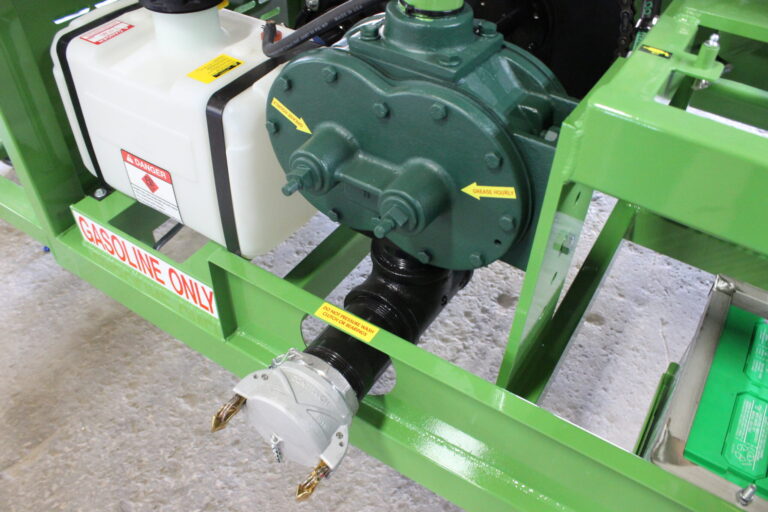

| Pump: 2″ Bowie Gear Pump | 4-Part F Quick Couplers |
| Length: Trailer 15’-9” (480 cm) Skid 11’-1” (338 cm) | 1-Part D Quick Coupler |
| Width: Trailer 6’-5” (196 cm) Skid 5’-6” (168 cm) | 1-2 5/16″ Ball (Trailer Mounted Only) |
| Height: Trailer 8’-9” (226 cm) Skid 7’-6” (198 cm) | Spanner Wrench |
| Empty Weight: Trailer 3500 lbs (1588 kg) Skid 2560 lbs (1161 kg) | Parts Manual |
| Approx. Loaded Weight: Trailer 8491 lbs (3851 kg) Skid 7551 lbs (3425 kg) | Engine Manual |
| Liquid Capacity: 597 US Gallons (2260 Liters) | Warranty |
* Operating Dimensions
All specifications subject to change without notice.
Specifications |
|---|

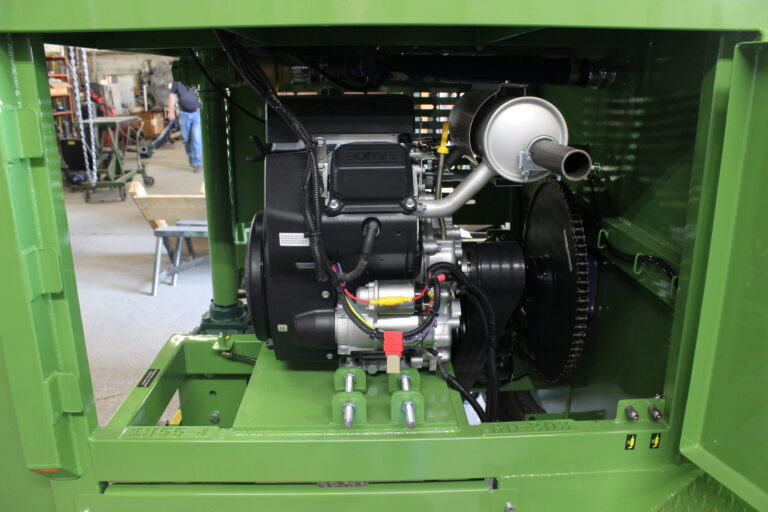

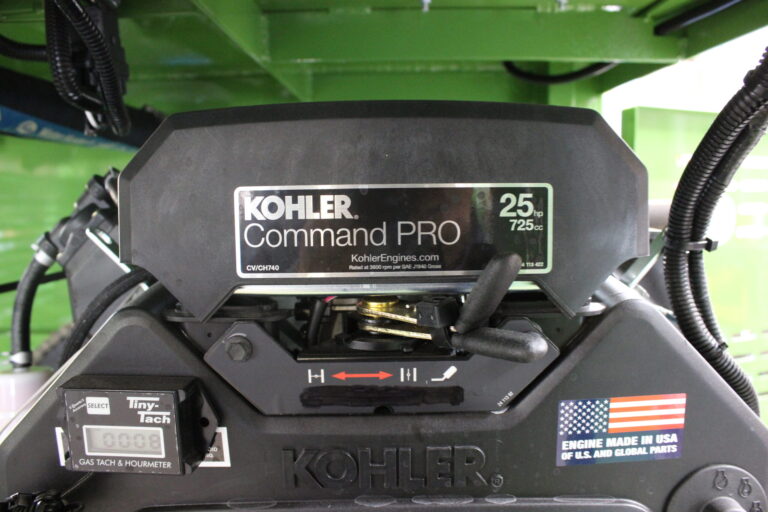

| Engine: Kohler 25 hp EFI Air Cooled Gas |
| Pump: 2″ Bowie Gear Pump |
| Length: Trailer 15’-9” (480 cm) Skid 11’-1” (338 cm) |
| Width: Trailer 6’-5” (196 cm) Skid 5’-6” (168 cm) |
| Height: Trailer 8’-9” (226 cm) Skid 7’-6” (198 cm) |
| Empty Weight: Trailer 3500 lbs (1588 kg) Skid 2560 lbs (1161 kg) |
| Approx. Loaded Weight: Trailer 8491 lbs (3851 kg) Skid 7551 lbs (3425 kg) |
| Liquid Capacity: 597 US Gallons (2260 Liters) |
* Operating Dimensions
All specifications subject to change without notice.
Standard Included Parts & Equipment |
|---|
| 4-Nozzles (EC1735, EC1739 EC1740 & EC1749) |
| 4-Part F Quick Couplers |
| 1-Part D Quick Coupler |

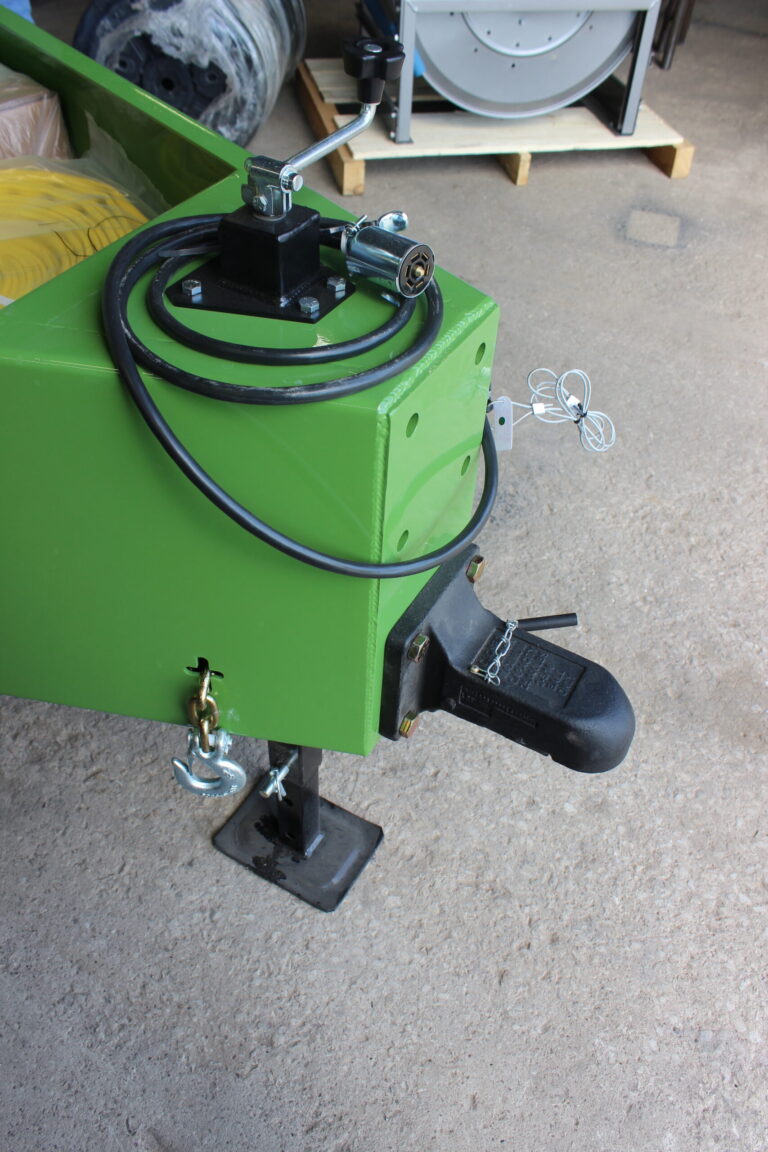

| 1-2 5/16″ Ball (Trailer Mounted Only) |
| Spanner Wrench |
| Parts Manual |
| Engine Manual |
| Warranty |
